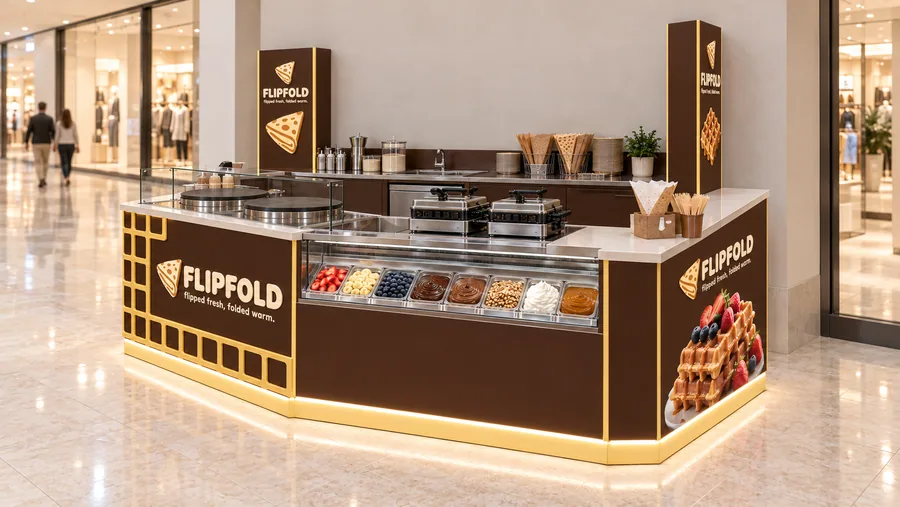

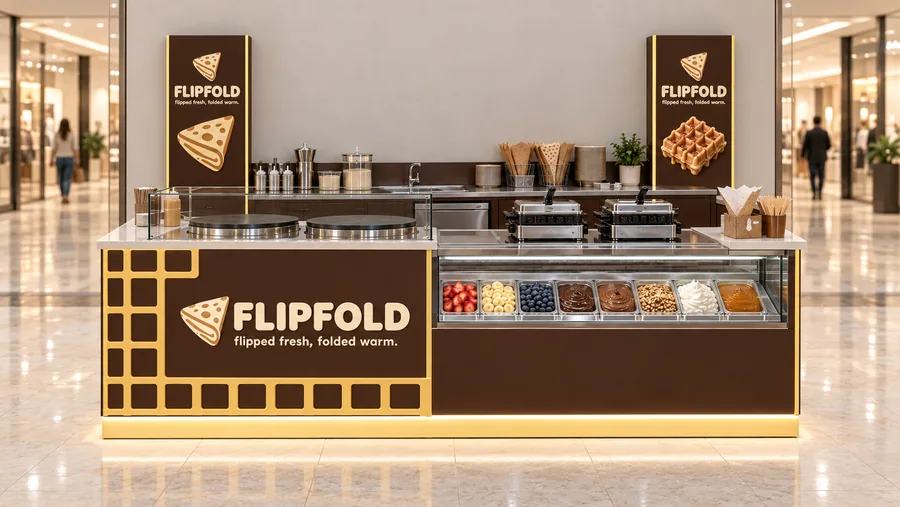

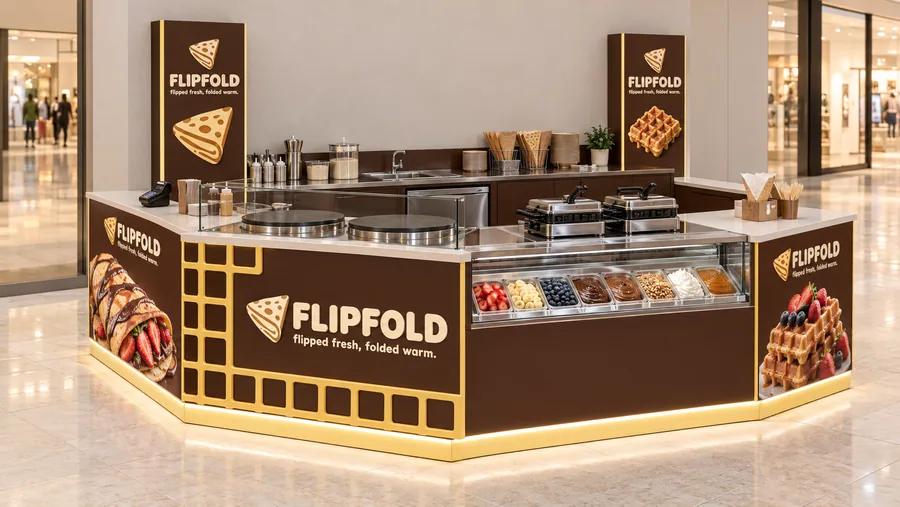

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Counter-type kiosk in front of a wall |
|---|---|
| Placement | In front of a wall: the BACK of the stand is placed against a plain mall wall between two shop fronts; the back side is used for storage and shelving; customers approach from the front and the two sides only. |
| Dimensions | 320 × 200 cm (10 ft 6.0 in × 6 ft 6.7 in), counter 110 cm (3 ft 7.3 in), two towers 210 cm (6 ft 10.7 in) |
| Sector | Sweet crêpes and Belgian waffles made to order, with fruit, chocolate and nut toppings |
| Brand shown | FLIPFOLD — a fictional brand created for this concept |
The story
FLIPFOLD makes crêpes and waffles in front of the customer, and the smell does half of the selling. The two griddles and two waffle irons sit at the front of the counter behind a low glass guard, so shoppers can watch the batter spread, flip and fold, and then choose their toppings from a row of eight bowls in the chilled case.
The stand is placed against a mall wall. The batter fridge, the sink and the paper stock are in the closed back unit, and the two sides show large photographs of a finished crêpe and a stack of waffles as the stand's advertising. The counter is exactly 110 cm high. The only tall parts are two towers of 60 × 15 × 210 cm at the back corners, one with a crêpe and one with a waffle, which stay within the mall limits.
Chocolate brown, butter yellow and cream are the colours of the product. The cooking is fully electric with no open flame, and a filter is built into the worktop, so no canopy or hood rises above the counter.
Manufacturing and materials
- Body: 18 mm moisture-resistant MDF, chocolate-brown matte lacquer; CNC-milled waffle-grid relief in butter-yellow lacquer.
- Worktop: 12 mm cream solid-surface on a 30 mm substrate, heat-resistant zone under the griddles, food-safe seamless joints.
- Cooking: two Ø 40 cm electric crêpe griddles and two electric waffle irons; worktop-integrated recirculating grease and odour filter; 6 mm tempered glass sneeze guard.
- Topping case: refrigerated eight-pan display, +2–4 °C, 6 mm glass, LED lighting.
- Back unit: chocolate HPL with a stainless-steel hand-wash sink and an under-counter batter fridge.
- Towers: steel frame, chocolate lacquered MDF, butter-yellow aluminium edge profiles, printed acrylic illustration panels.
- Services: 3-phase 32 A power line for the griddles and irons; water supply and drain through the wall; fire blanket and extinguisher in the back unit.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
