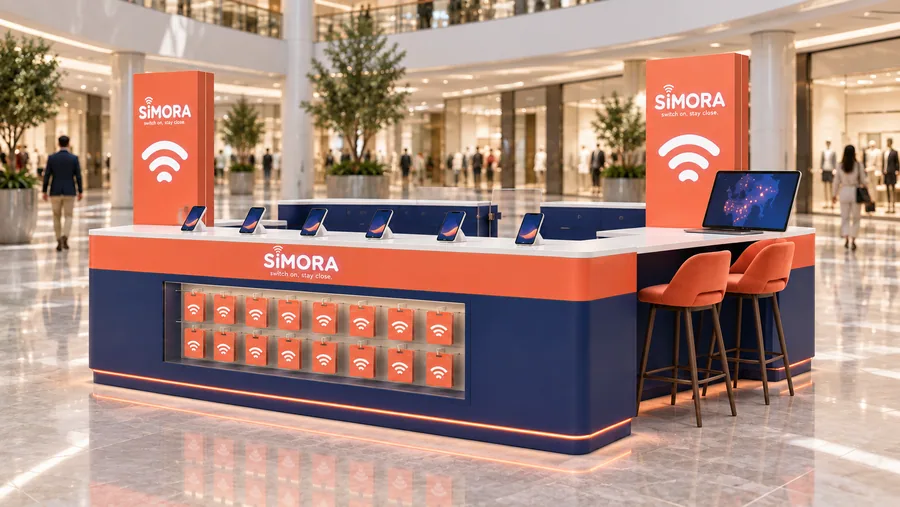

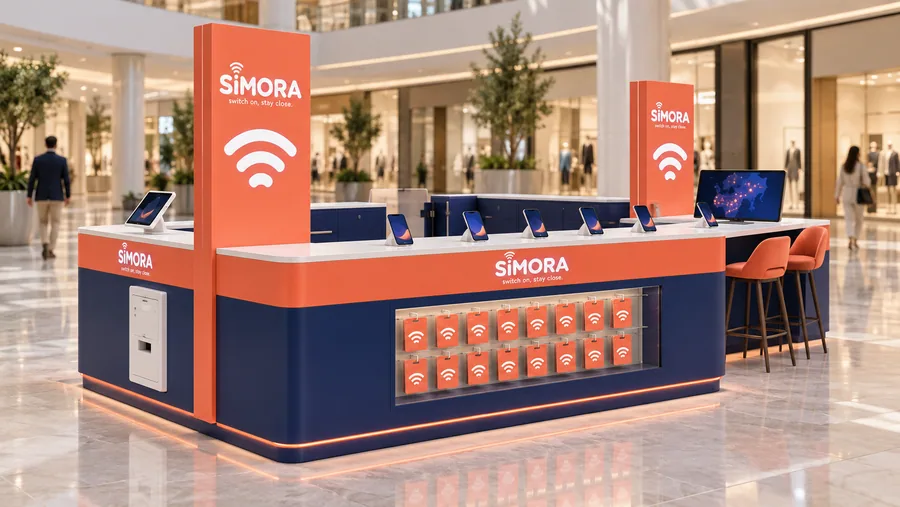

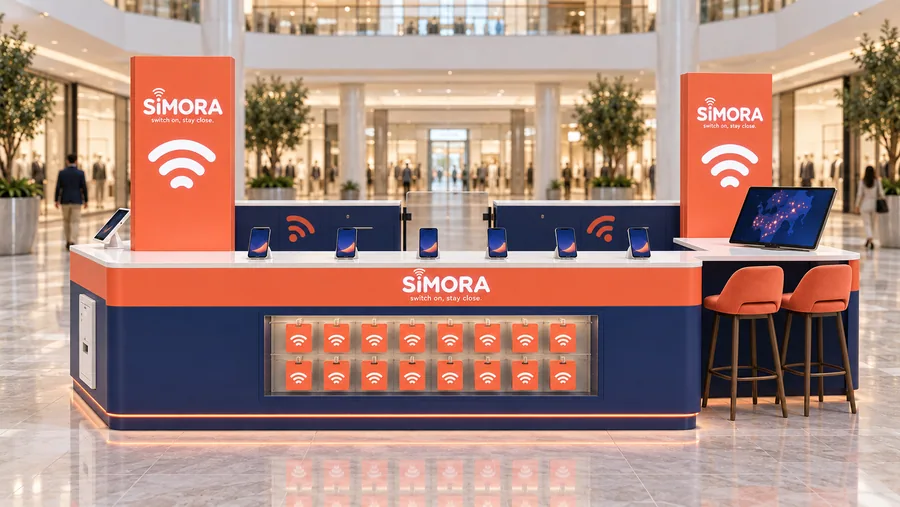

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Counter-type island kiosk |
|---|---|
| Placement | Island: in the open floor of the mall concourse, open to customers on all four sides. |
| Dimensions | 340 × 220 cm (11 ft 1.9 in × 7 ft 2.6 in), counter 110 cm (3 ft 7.3 in), two towers 210 cm (6 ft 10.7 in) |
| Sector | Mobile operator promotion booth: SIM cards, eSIM activation, tariff advice and number transfer |
| Brand shown | SIMORA — a fictional brand created for this concept |
The story
SIMORA is a mobile operator for people who want a new line or a better tariff without queuing in a shop. The stand is a clear, low island in deep indigo with a coral band that carries the brand around all four sides.
Each side has one job: try the phones at the front, activate a SIM from the dispenser on the left, compare tariffs on the flush screen on the right. Everything stays at 110 cm so the mall stays open around it. Two coral towers on opposite corners carry the logo up to 210 cm, within the 60 × 15 × 210 cm mall limit, and are seen from both ends of the corridor.
The signal-arc icon from the logo returns on the towers, on the SIM packs and on the staff side, so the stand reads as one brand even from far away.
Manufacturing and materials
- Body: 18 mm MDF, deep-indigo matte lacquer; coral lacquered logo band with raised white acrylic letters, 5 mm.
- Worktop: 12 mm white solid-surface on a 30 mm substrate, rounded edge.
- Phone stands: white alarmed anti-theft stands with retractable cables and charging.
- SIM window: 8 mm tempered glass in the counter face, lockable rear access, 5000K LED.
- Tariff screen: 43" commercial display under 6 mm anti-glare tempered glass, set into the worktop.
- Towers: steel box frame clad in coral lacquered MDF, bolted to the counter structure; white acrylic letters and icons.
- Services: 16 A power line, network line for the activation tablet and the SIM dispenser; hidden cable ducts.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
