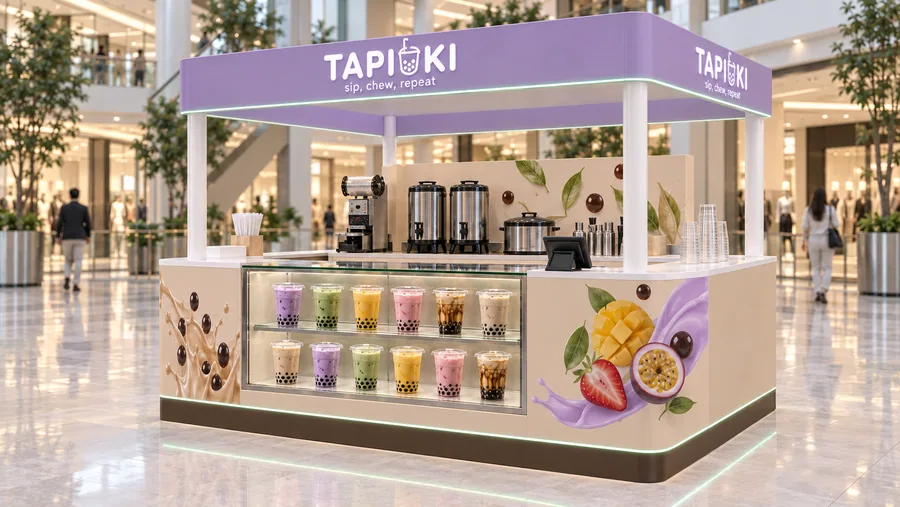

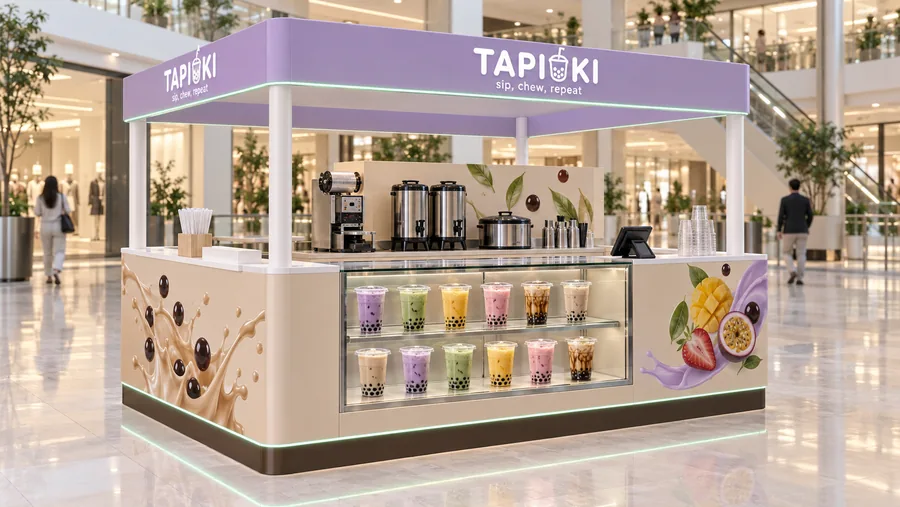

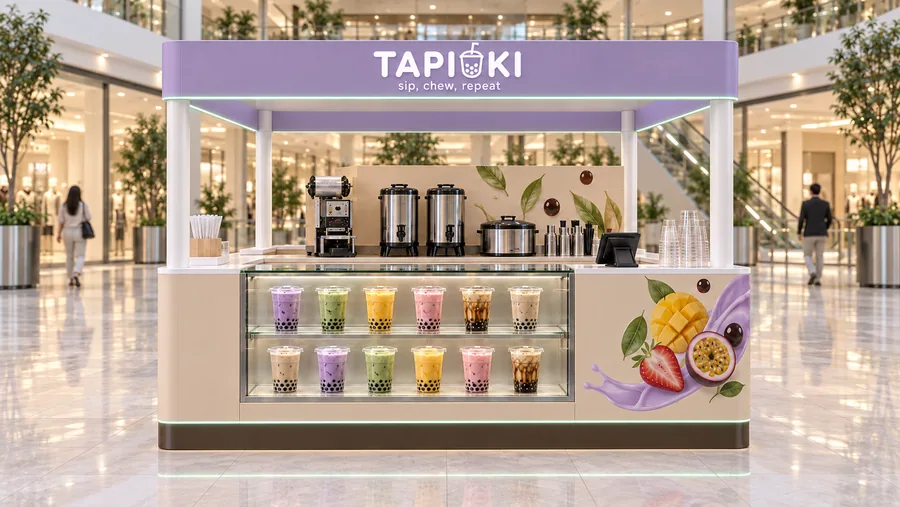

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Crowned island kiosk |
|---|---|
| Placement | Island: in the open floor of the mall concourse, open to customers on all four sides. |
| Dimensions | 320 × 240 cm (10 ft 6 in × 7 ft 10.5 in), overall height 220 cm (7 ft 2.6 in), crown 20 cm (7.9 in) |
| Sector | Bubble tea: milk teas and fruit teas with tapioca pearls and popping boba, made to order |
| Brand shown | TAPIOKI — a fictional brand created for this concept |
The story
TAPIOKI is a bubble-tea bar for a young crowd that wants a drink to carry around the mall. The stand is laid out as a loop: order at the front where twelve sealed sample cups show every flavour, watch the drink being shaken and sealed at the back, and collect it on the left.
The crown is exactly 20 cm high and the stand stays within 220 cm overall on four slim white columns, so it reads as light and open in the middle of the concourse. The logo repeats on all four crown faces.
Taro lavender, milk-tea beige and mint come straight from the drinks. Only the front has a showcase, so the other three counter faces carry large, colourful graphics of splashing tea, pearls and fruit, visible from every approach.
Manufacturing and materials
- Body: 18 mm moisture-resistant MDF, milk-tea beige matte lacquer; all lower edges sealed against spills.
- Tops: 12 mm white solid-surface, food-safe, seamless joints and an integrated drip channel on the preparation side.
- Showcase: 8 mm tempered glass, 4000K LED, display cups resin-filled for a permanent look.
- Columns: Ø 100 mm steel tubes, white powder coat; cables routed inside.
- Crown: 20 × 16 cm aluminium box section, lavender lacquer, white acrylic letters, mint LED line.
- Services: water inlet and drain to the preparation counter through the plinth; 32 A power line for the pearl cooker, urns and sealing machine; under-counter refrigerator with side ventilation.
- Side graphics: UV print on 3 mm aluminium composite with wipe-clean laminate.
- Base: adjustable steel feet, deep-brown plinth, IP65 mint LED.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
