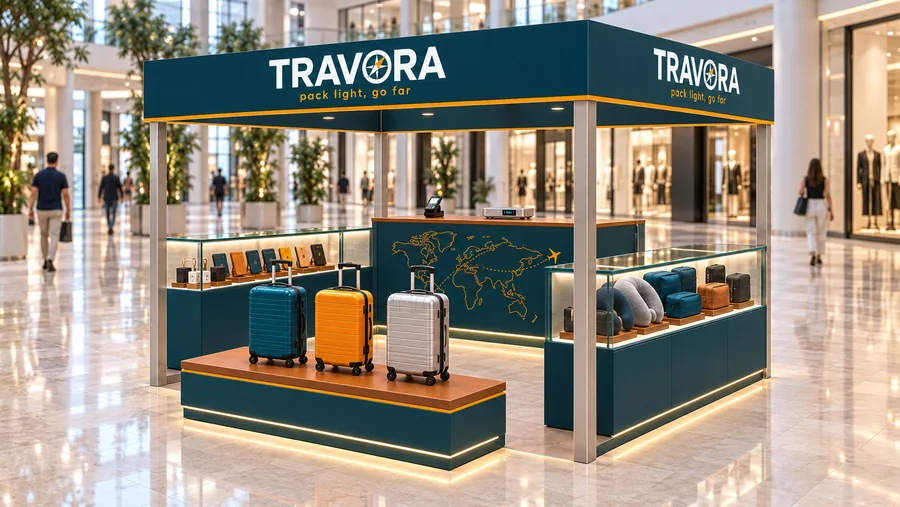

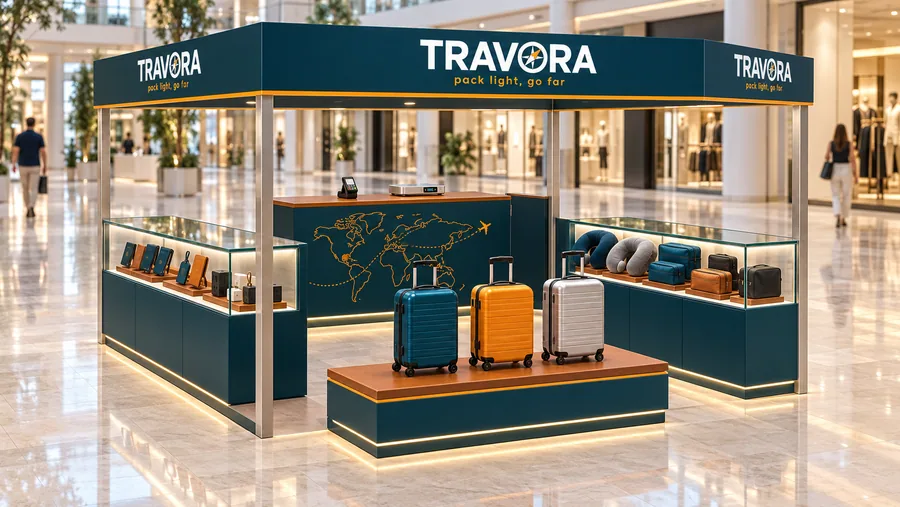

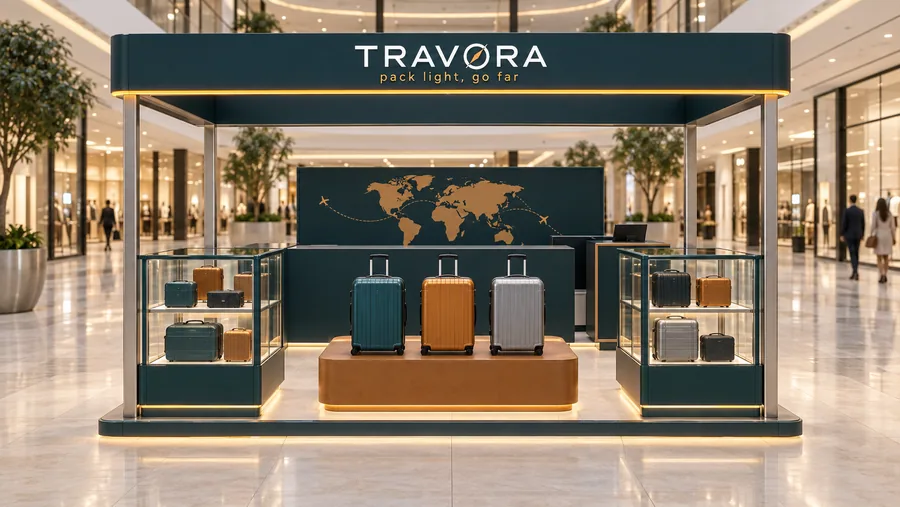

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Crowned island kiosk |
|---|---|
| Placement | Island: in the open floor of the mall concourse, open to customers on all four sides. |
| Dimensions | 320 × 240 cm (10 ft 6.0 in × 7 ft 10.5 in), overall height 220 cm (7 ft 2.6 in), crown 20 cm (7.9 in) |
| Sector | Travel accessories and luggage: cabin suitcases, passport wallets, luggage tags, travel adapters, neck pillows and packing cubes |
| Brand shown | TRAVORA — a fictional brand created for this concept |
The story
TRAVORA is for the traveller who remembers on the way to the airport what is missing from the bag: an adapter, a luggage tag, a neck pillow, or a better cabin suitcase. The stand looks like a small departure gate, with midnight teal and amber taken from airport signage, cognac leather tops and brushed aluminium like a good suitcase frame.
The front is kept low on purpose. Three cabin suitcases stand on a 40 cm podium where people can roll them, lift them and test the handles, while the two sides are lit showcases for the small accessories. The back is a closed counter for payment and weighing, and its face shows a world map with a dotted flight path, so it advertises the brand instead of being a blank panel.
The stand is 220 cm tall overall. The crown is 20 cm high and 18 cm thick and sits on four slim 10 × 10 cm columns, which keeps the view across the concourse open. TRAVORA is shown on all four faces of the crown.
Manufacturing and materials
- Body: 18 mm MDF, midnight-teal matte lacquer; amber lacquered aluminium inlay lines.
- Tops: 12 mm MDF wrapped in cognac leather-look PU with stitched edges, on a 25 mm substrate.
- Showcases: 8 mm tempered glass tops with lockable sliding back panels; 4000K LED strips.
- Columns: 10 × 10 cm aluminium square tubes, brushed and clear-anodised; cables routed inside.
- Crown: 20 × 18 cm aluminium box section, teal lacquer, white acrylic letters with a compass icon in amber acrylic.
- Podium: plywood frame with a 20 mm anti-slip top, rated for 150 kg; suitcases secured with hidden cable locks.
- Back graphic: amber vinyl line print on the teal lacquer, sealed with a matte anti-scratch laminate.
- Services: 16 A power line through the plinth for the showcase LEDs, the terminal and the scale.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
