These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Crowned kiosk in front of a balcony |
|---|---|
| Placement | In front of a balcony railing: the BACK of the stand stands against the glass balustrade of an upper-floor gallery, with the atrium void and the lower floors visible behind it; customers approach from the front and the two sides only. |
| Dimensions | 280 × 200 cm (9 ft 2.2 in × 6 ft 6.7 in), overall height 220 cm (7 ft 2.6 in), crown 20 cm (7.9 in) |
| Sector | Generic retro-style plug-and-play consoles, handheld retro consoles, controllers and cartridge-style game packs |
| Brand shown | BYTEBACK — a fictional brand created for this concept |
The story
BYTEBACK sells the feeling of the first games many parents played, in small plug-and-play consoles their children can enjoy too. The stand is dressed like an old home computer: retro beige, black tops and red and blue stripes, with a pixel-letter logo.

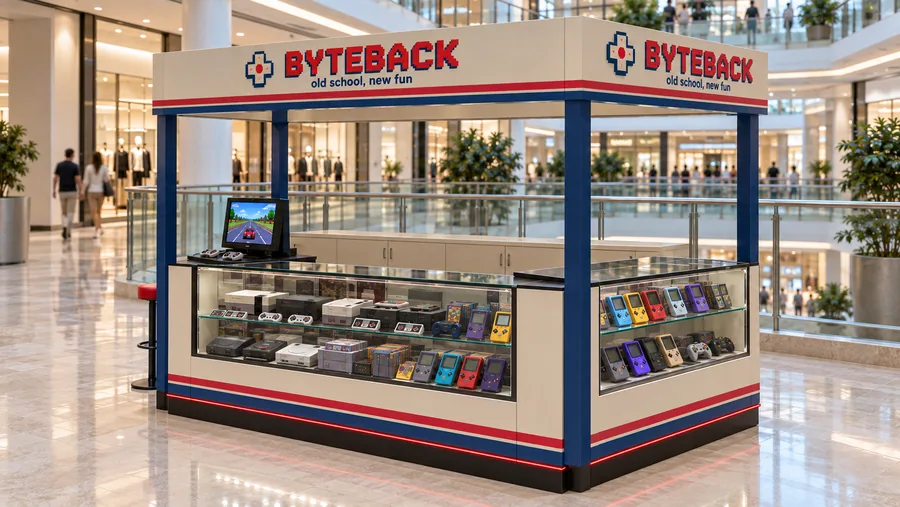

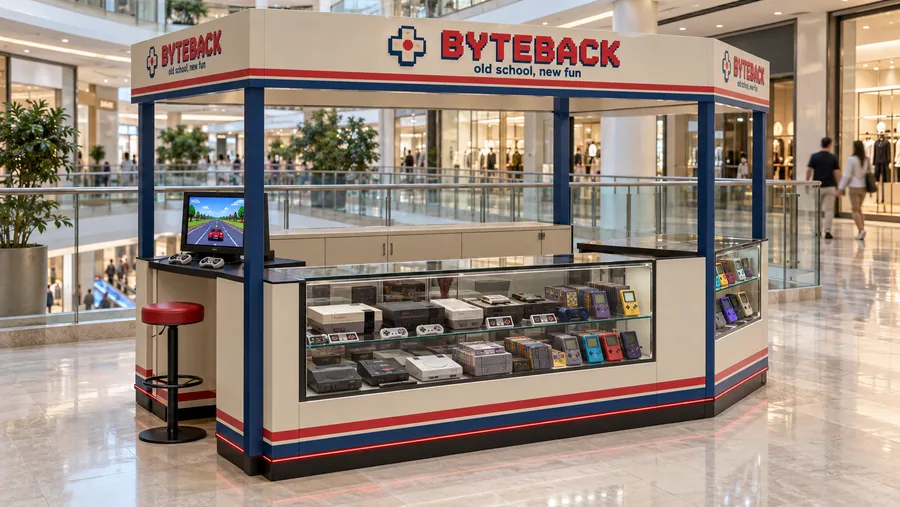

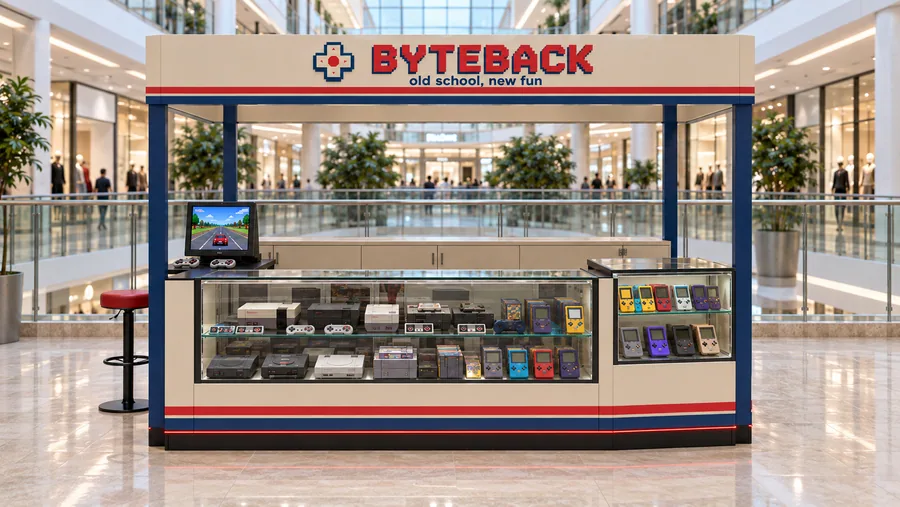

Placed at the balcony, the back is a closed cabinet for stock, and the three customer sides are for looking and playing. The front showcase holds the range, the right side the handhelds, and the left side a small play station where two people can race each other. The crown stays within the 220 cm limit and shows the name to all three customer sides.
Manufacturing and materials
- Body: 18 mm MDF, retro-beige satin lacquer; black HPL tops; red and blue lacquered stripe inlays.
- Columns: 100 × 100 mm steel box sections, deep-blue powder coat.
- Crown: 20 × 16 cm aluminium box section, beige; red acrylic pixel letters with a blue shadow layer.
- Showcases: 8 mm tempered glass tops, lockable; 5000K LED.
- Play station: 40 cm display on a hidden bracket, demo console locked in the counter, controllers on steel tethers.
- Stool: powder-coated steel frame, red vinyl seat.
- Services: 16 A power line; ventilated compartment for the demo console.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
