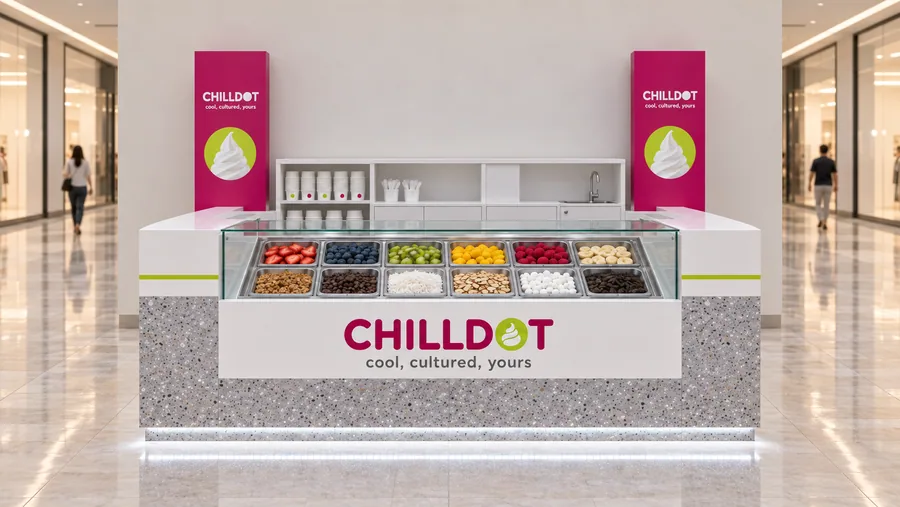

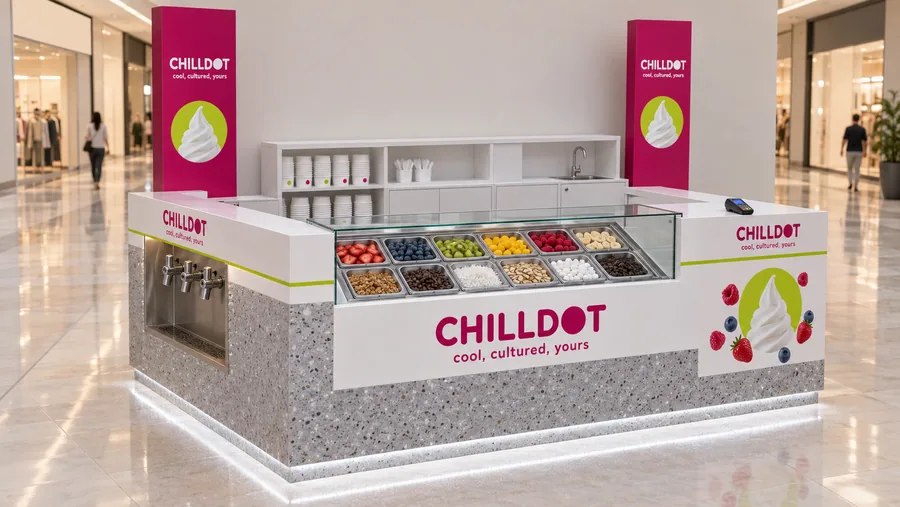

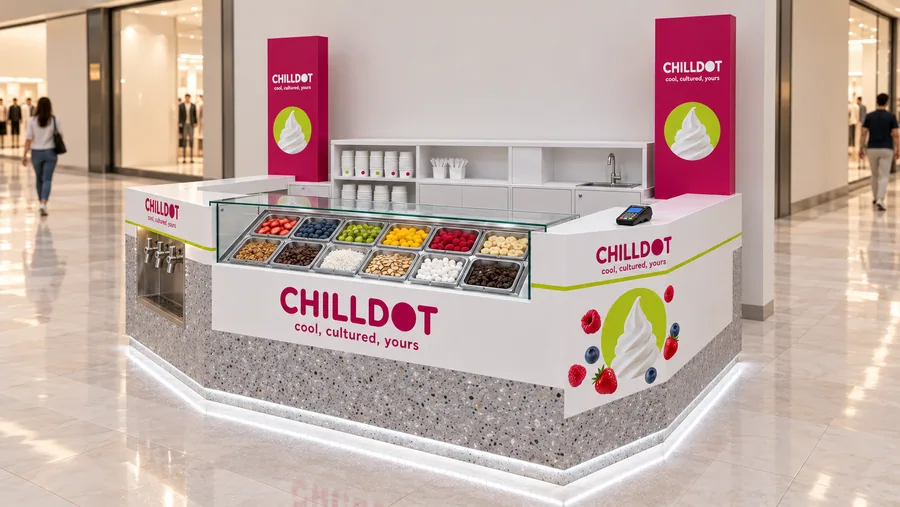

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Counter-type kiosk in front of a wall |
|---|---|
| Placement | In front of a wall: the BACK of the stand is placed against a plain mall wall between two shop fronts; the back side is used for storage and shelving; customers approach from the front and the two sides only. |
| Dimensions | 320 × 200 cm (10 ft 6 in × 6 ft 6.7 in), counter 110 cm (3 ft 7.3 in), two towers 210 cm (6 ft 10.7 in) |
| Sector | Frozen yogurt in cups with fresh fruit and crunchy toppings |
| Brand shown | CHILLDOT — a fictional brand created for this concept |
The story
CHILLDOT is frozen yogurt made simple: pull your own swirl from the taps on the left, point at your toppings on the front, pay on the right. The stand sits against a mall wall, so all the cups, spoons and the hand-wash sink live in the shelving at the back.
The yogurt machines are built inside the counter and the fruit sits in a sunken bar under flat glass, so the whole kiosk stays at 110 cm. Only two magenta towers of 60 × 15 × 210 cm rise at the back corners to carry the logo along the corridor.
White, terrazzo, magenta and a single lime dot make it look fresh and cold without feeling clinical.
Manufacturing and materials
- Body: 18 mm moisture-resistant MDF; lower panels in 12 mm terrazzo-look compact laminate, upper panels in white matte lacquer.
- Toppings bar: refrigerated 12 × GN 1/6 well at +4 °C, stainless pans, 8 mm tempered-glass sneeze-guard cover flush with the worktop.
- Yogurt dispensers: three built-in soft-serve units with front taps, removable drip tray, side ventilation grilles in the counter body.
- Worktop: 12 mm white solid-surface, food-safe, seamless joints.
- Back unit: white HPL shelving fixed to the wall; stainless hand-wash sink with hot water and a drain through the wall services.
- Towers: steel frame, magenta lacquered MDF, printed acrylic dot-and-swirl panels.
- Services: 32 A power line for the refrigeration, water supply and drain through the wall.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
