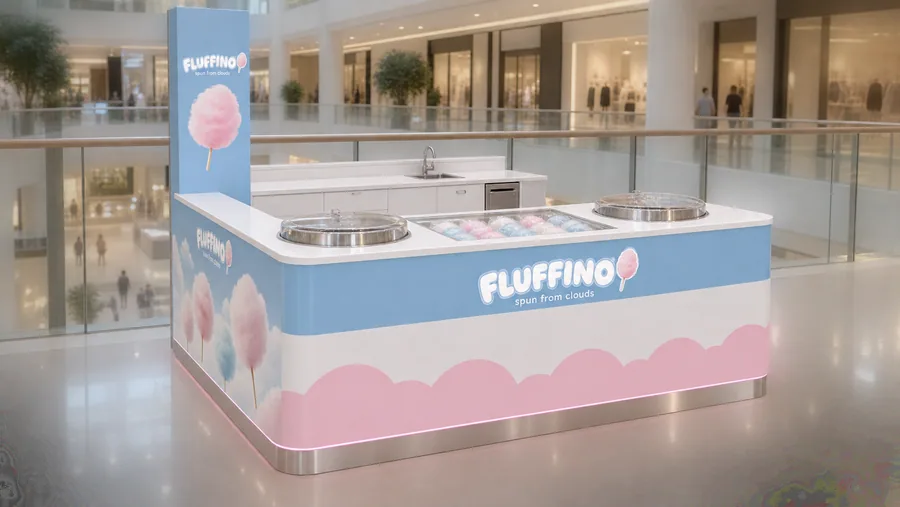

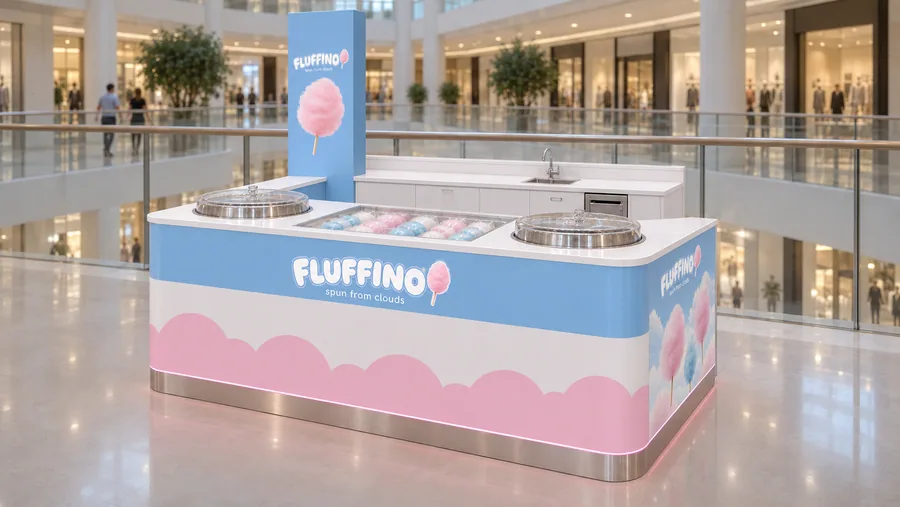

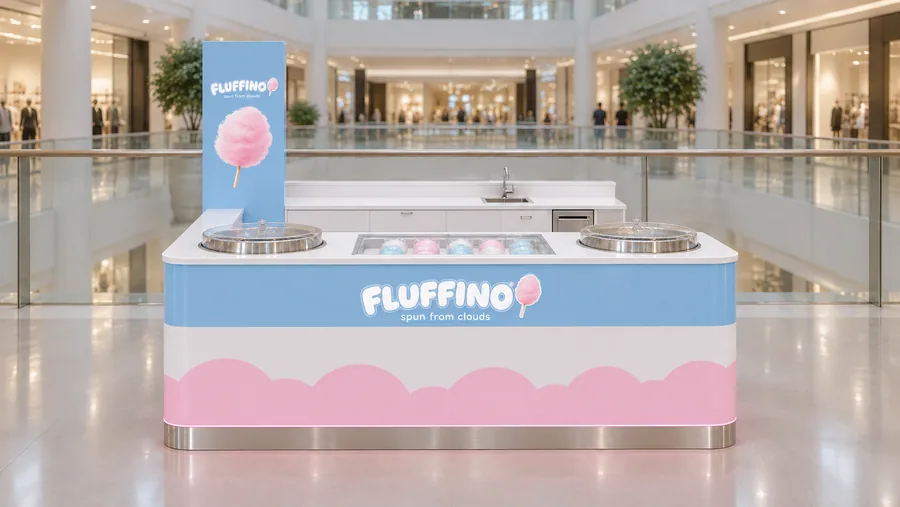

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Counter-type kiosk in front of a balcony |
|---|---|
| Placement | In front of a balcony railing: the BACK of the stand stands against the glass balustrade of an upper-floor gallery, with the atrium void and the lower floors visible behind it; customers approach from the front and the two sides only. |
| Dimensions | 280 × 180 cm (9 ft 2.2 in × 5 ft 10.9 in), counter 110 cm (3 ft 7.3 in), one tower 210 cm (6 ft 10.7 in) |
| Sector | Freshly spun cotton candy in pastel colours, sold on sticks and in sealed bags |
| Brand shown | FLUFFINO — a fictional brand created for this concept |
The story
FLUFFINO sells one thing and makes a show of it: sugar turned into clouds while you wait. The stand sits on the gallery balcony, so the pastel colours can be seen from the floors below, and children can watch the candy grow around the stick at the front.
Both spinning bowls are sunk into the counter so the kiosk stays at a clean 110 cm, with nothing sticking up except one slim tower of 60 × 15 × 210 cm at the back-left corner. The back faces the railing and holds all the sugar stock and a hand-wash sink.
The sides without equipment carry soft cloud and swirl graphics, and the FLUFFINO name runs along the blue band on every customer side.
Manufacturing and materials
- Body: 18 mm MDF, white high-gloss lacquer; pastel-pink lacquered wave band cut on a CNC router.
- Worktop: 12 mm white solid-surface, food-safe, with thermoformed round wells for the bowls.
- Spinning units: two commercial cotton-candy heads built into the counter, stainless bowls, with an anti-splash well lining.
- Sneeze guards: 10 mm clear cast-acrylic lids on stainless piano hinges, flush with the worktop when closed.
- Back cabinet: white HPL carcass with sugar drawers; stainless hand-wash sink, under-sink water heater, fresh-water and sealed waste tanks.
- Tower: steel box frame, baby-blue lacquered MDF, printed acrylic illustration panel.
- Services: 16 A power line; hidden cable ducts; brushed-silver plinth with IP65 LED.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
