These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Counter-type kiosk in front of a wall |
|---|---|
| Placement | In front of a wall: the BACK of the stand is placed against a plain mall wall between two shop fronts; the back side is used for storage and shelving; customers approach from the front and the two sides only. |
| Dimensions | 300 × 180 cm (9 ft 10.1 in × 5 ft 10.9 in), counter 110 cm (3 ft 7.3 in), two towers 210 cm (6 ft 10.7 in) |
| Sector | Italian-style gelato, sorbet and waffle cones |
| Brand shown | SCOOPY — a fictional brand created for this concept |
The story

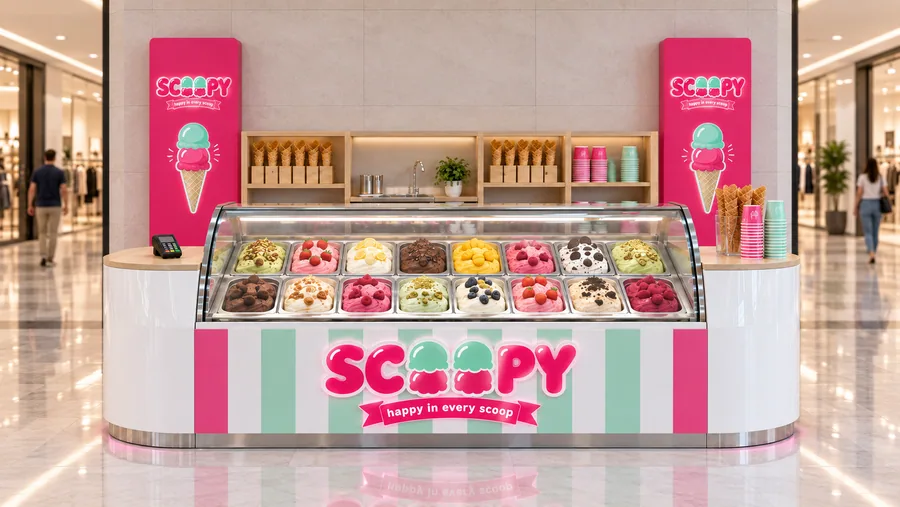

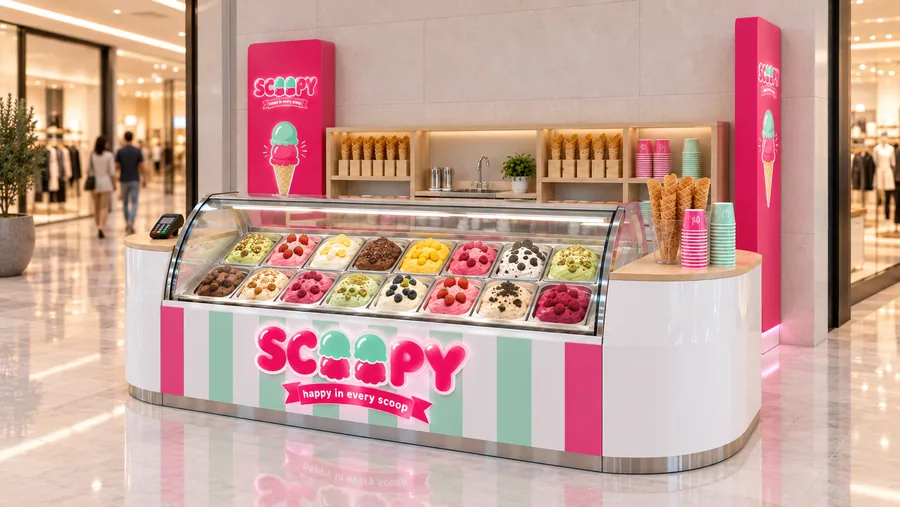

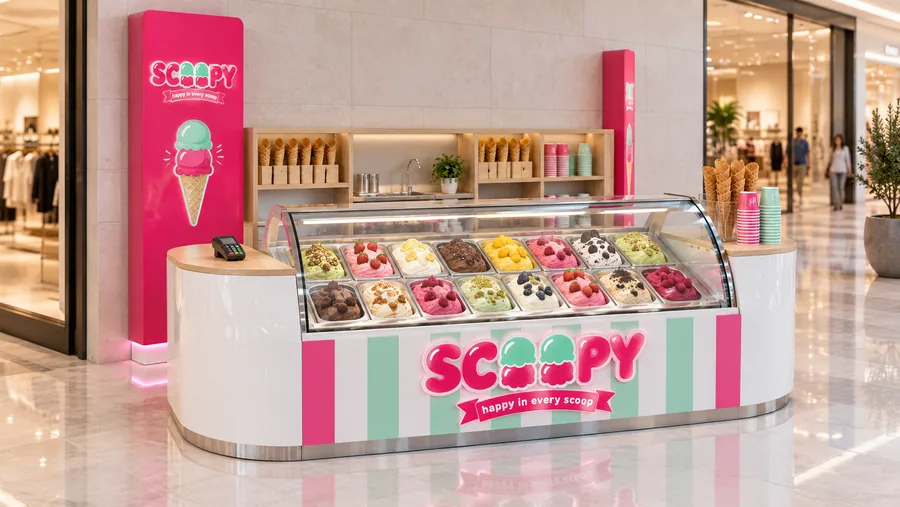

SCOOPY is a gelato brand for families and anyone who needs a small treat halfway through a shopping trip. The stand is placed against a mall wall, so all the storage, the sink and the cone stock sit at the back, and the front is one long curved case of colour.
Two pink towers mark the back corners and carry the logo high enough to be seen along the corridor, while the rest of the kiosk stays at the 110 cm counter height. The towers stay within the mall limit of 60 × 15 × 210 cm.
Pastel mint and raspberry pink stripes, a bubbly logo with two scoops for the O's and warm birch wood make the stand read as fun and fresh.
Manufacturing and materials
- Body: 18 mm MDF in white high-gloss lacquer; stripes in pink and mint lacquer.
- Tops: 20 mm birch plywood with a food-safe clear lacquer.
- Gelato case: refrigerated 16-pan curved-glass gelato display, -14 °C, 8 mm heated front glass against condensation, LED lighting.
- Back unit: birch plywood shelving with a stainless-steel hand-wash sink connected to the wall services.
- Towers: steel frame, pink lacquered MDF cladding, printed acrylic illustration panels.
- Services: 32 A power line for the refrigeration, water supply and drain through the wall.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
