These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Crowned kiosk in front of a balcony |
|---|---|
| Placement | In front of a balcony railing: the BACK of the stand stands against the glass balustrade of an upper-floor gallery, with the atrium void and the lower floors visible behind it; customers approach from the front and the two sides only. |
| Dimensions | 300 × 220 cm (9 ft 10.1 in × 7 ft 2.6 in), overall height 220 cm (7 ft 2.6 in), crown 20 cm (7.9 in) |
| Sector | Ramen noodle soups in take-away bowls, with rich broths and fresh toppings |
| Brand shown | NOODORI — a fictional brand created for this concept |
The story

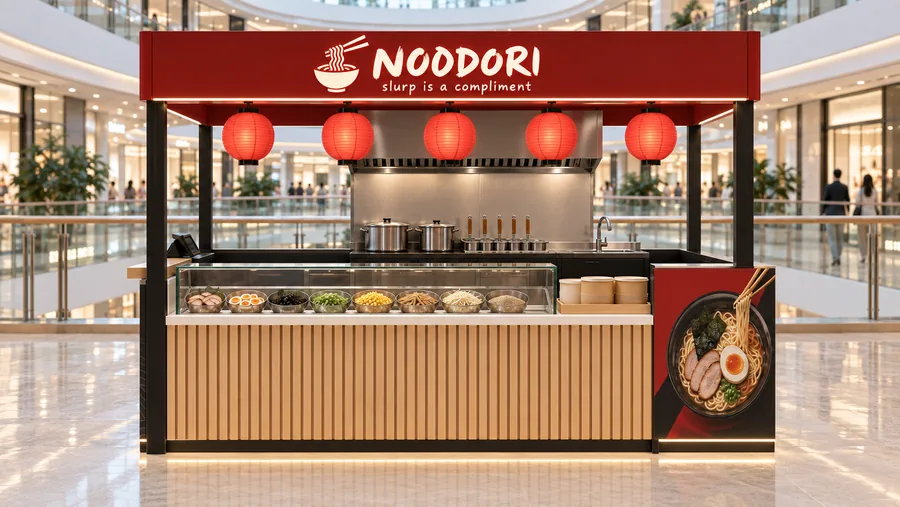

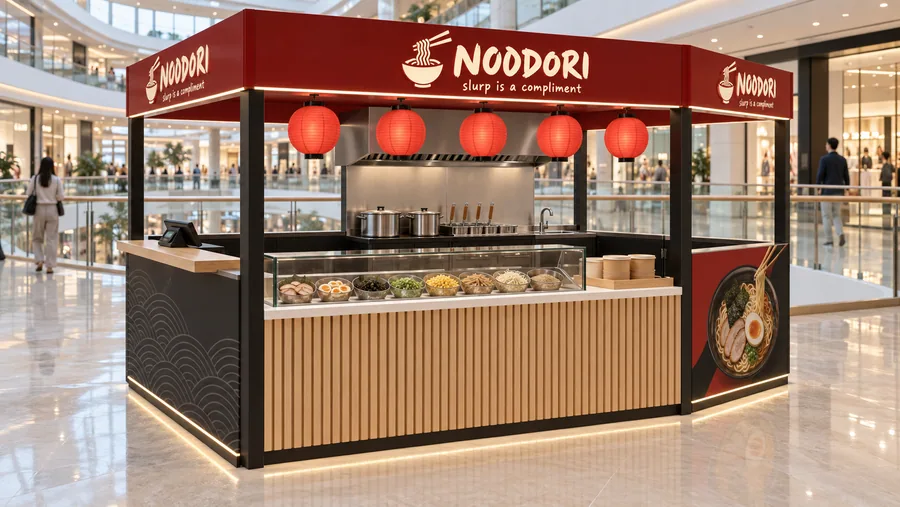

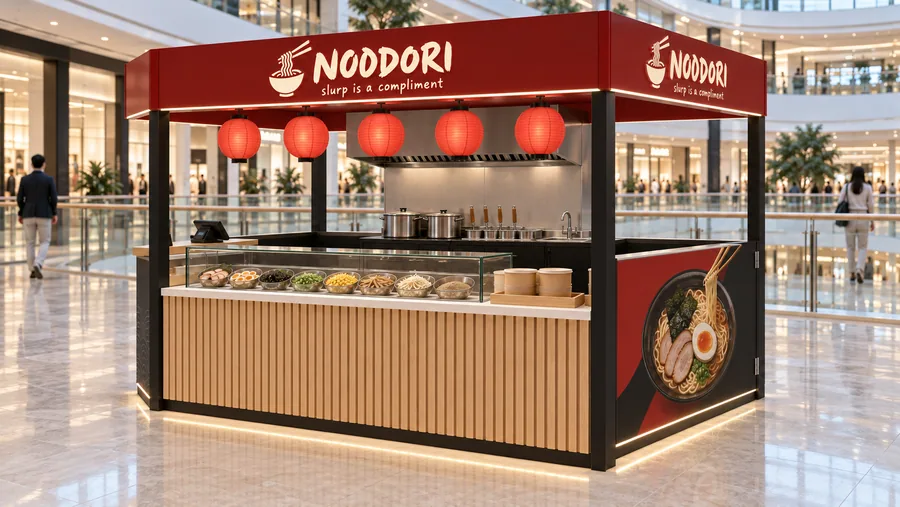

NOODORI is a ramen counter on the gallery floor. Two big pots of broth simmer at the back of the stand, noodles cook in baskets beside them, and every bowl is finished at the front with toppings the customer can see under glass.
The back of the stand faces the balcony railing, so it is closed and holds the whole kitchen: pots, noodle boiler and a hand-wash sink under a recirculating hood that catches the steam. The crown stays within the 220 cm limit, is 20 cm high, and five red lanterns hang between the front columns like the entrance of a small noodle bar.
Lacquer red, ink black and pale hinoki wood give the stand a clean Japanese feel without any lettering other than the brand.
Manufacturing and materials
- Body: 18 mm moisture-resistant MDF, ink-black lacquer; front face in solid hinoki-look slats (40 × 20 mm) with a clear matte finish.
- Cooking: two 3.5 kW induction hobs with 40-litre stainless stock pots and lids; electric 6-basket noodle boiler with overflow drain.
- Extraction: stainless hood with grease filters, activated-carbon stage and condensate tray, recirculating; fixed to the back columns.
- Topping showcase: refrigerated 8-bowl well (+3 °C) with a 6 mm tempered-glass sneeze guard.
- Hygiene: stainless hand-wash sink with hot water; fresh-water and grey-water tanks in the back cabinet.
- Columns and crown: 10 × 10 cm black powder-coated steel; 20 × 16 cm aluminium crown in red lacquer with warm-white acrylic letters.
- Lanterns: five Ø 30 cm red flame-retardant fabric lanterns with LED inside.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
