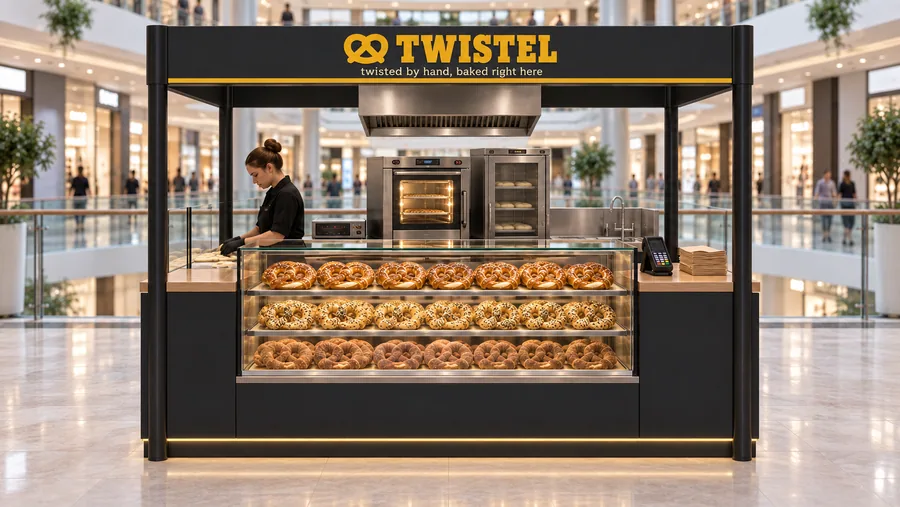

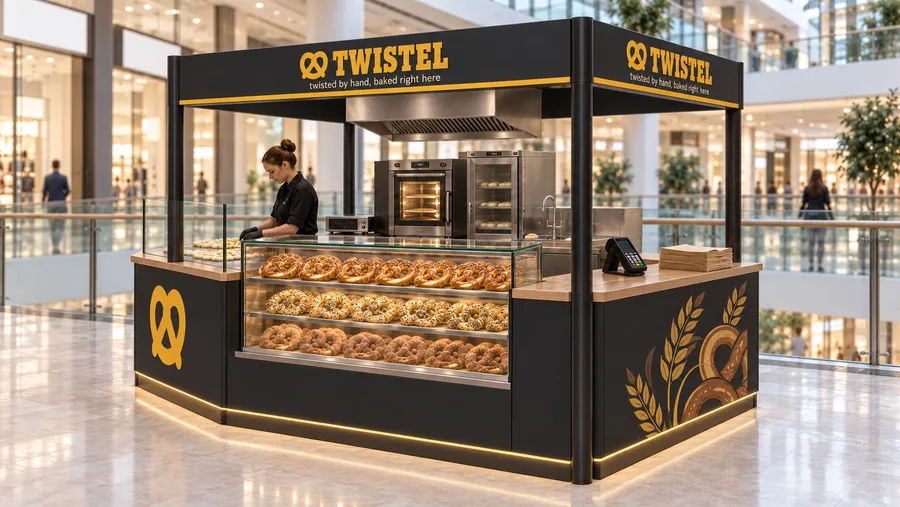

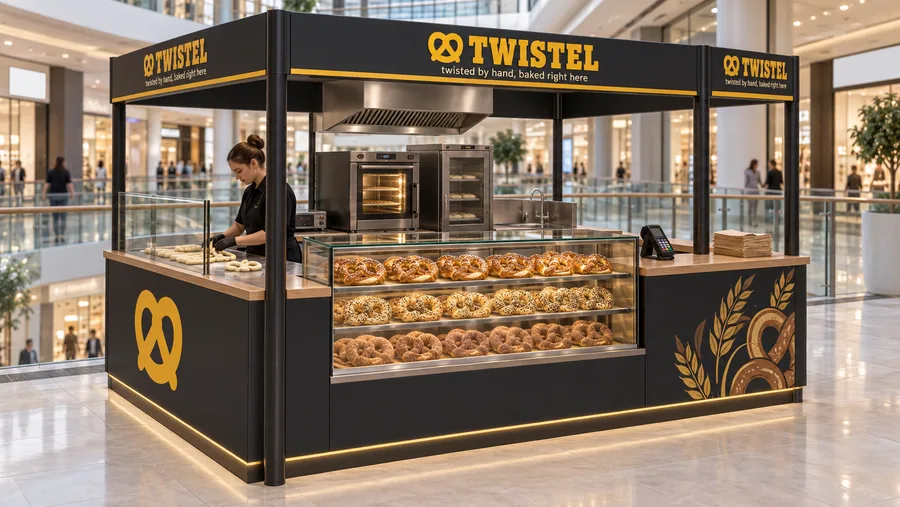

These designs are AI-assisted 3D visualisations
Stand Dünyası can manufacture more than 90% of what you see here in its own workshop. Some details an AI cannot foresee may not be reproducible exactly as shown. When you contact us about a design you like, we tell you plainly which parts can be built as drawn and which need adapting — we do not make a promise we cannot keep.
Specification
| Stand type | Crowned kiosk in front of a balcony |
|---|---|
| Placement | In front of a balcony railing: the BACK of the stand stands against the glass balustrade of an upper-floor gallery, with the atrium void and the lower floors visible behind it; customers approach from the front and the two sides only. |
| Dimensions | 280 × 200 cm (9 ft 2.2 in × 6 ft 6.7 in), overall height 220 cm (7 ft 2.6 in), crown 20 cm (7.9 in) |
| Sector | Soft pretzels twisted by hand and baked on site: salted, sesame, cinnamon-sugar and cheese |
| Brand shown | TWISTEL — a fictional brand created for this concept |
The story
TWISTEL bakes pretzels the way a small bakery would: dough twisted by hand on the left side, baked in the oven at the back, sold warm from the case at the front. The smell reaches the whole gallery, and the stand at the balcony can be seen from the floors below.
The back faces the railing and holds everything that needs to be hidden: the oven, the proofer and the hand-wash sink, with a recirculating hood directly above the oven. The crown is 20 cm high and the stand stays within the 220 cm limit on four slim 10 cm columns.
Charcoal and mustard with warm beech give it the look of a modern bakery, and TWISTEL appears on the crown above every customer side.
Manufacturing and materials
- Body: 18 mm MDF, charcoal matte lacquer; oven zone lined with fire-rated board and stainless panels.
- Worktops: 30 mm solid beech with a food-safe oil; stainless-steel twisting worktop on the left.
- Display: heated humidified pretzel case, 8 mm tempered glass, 3 shelves, LED lighting.
- Baking: compact electric deck oven and a proofing cabinet built into the back unit with side ventilation.
- Extraction: stainless recirculating hood with grease baffle, activated-carbon filter and fan speed control.
- Hygiene: 8 mm tempered-glass sneeze screen; stainless hand-wash sink with water heater, fresh-water and sealed waste tanks.
- Columns and crown: Ø 100 mm charcoal steel tubes; 20 × 16 cm aluminium crown section with mustard acrylic letters; 32 A power line through a column.
Final dimensions are confirmed by on-site measurement before production. Mall height limits, electrical supply and fire regulations are checked with the centre’s technical office at project stage.
